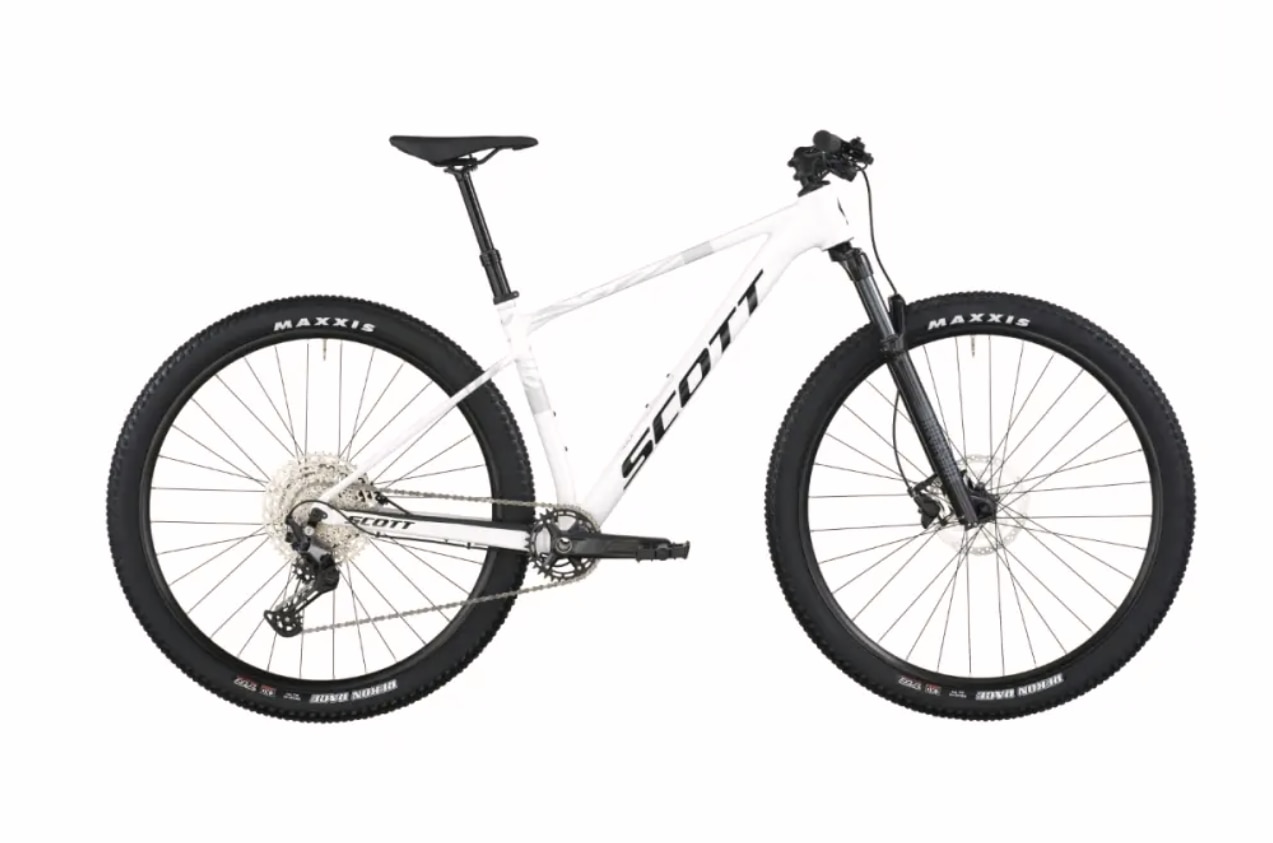

SCOTT SCALE 940

Frame

Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System

BB92, QR Axle 5x141mm with 55mm Chainline

Fork

RockShox Judy Silver TK Coil

QR, 51mm offset, Reb. Adj., Lockout, 100mm travel

Rear Derailleur

Shimano Deore RD-M6100 SGS

Shadow Plus, 12 Speed

Shifters

Shimano Deore SL-M6100-R, Rapidfire Plus

Crankset

Shimano FC-MT512-1

55mm CL, 32T

BB-Set

Shimano BB-MT500, shell 41x92mm

Chain

Shimano CN-M6100

Cassette

Shimano Deore CS-M6100-12, 10-51 T

Brakes

Shimano MT200 Disc Brake

Rotor

Shimano SM-RT10 CL, 180/F and 160/R

Handlebar

Syncros Alloy 6061

T shape Flat, 9°, 740mm

Syncros Performance XC lock-on grips

Handlebar stem

Syncros Alloy 6061

oversized 31.8mm, 1 1/8“, 6° angle

Seatpost

Syncros Duncan Dropper, 31.6mm

XS&S size 100mm, M size 130mm, L &XL size 150mm

Seat

Syncros Belcarra Regular 2.5

Headset

Syncros - Acros OE Cable Routing HS System

OD 50/62mm, ID 42/56mm

Hub (Front)

Formula CL-51

Hub (Rear)

Formula CL-541M, 5x141mm, Micro Spline

Spokes

Stainless Black 15G, 1.8mm

Rims

Alex X-25/ 32H, 25mm

Tubeless ready

Front Tire

Maxxis Rekon Race, 29x2.4”, EXO, Tubeless Ready

Rear Tire

Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready

Approx weight in KG

13.9 (Tubless setup without pedals)

Approx weight in LBS

30.64 (Tubless setup without pedals)

Max. System Weight

130kg

The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
