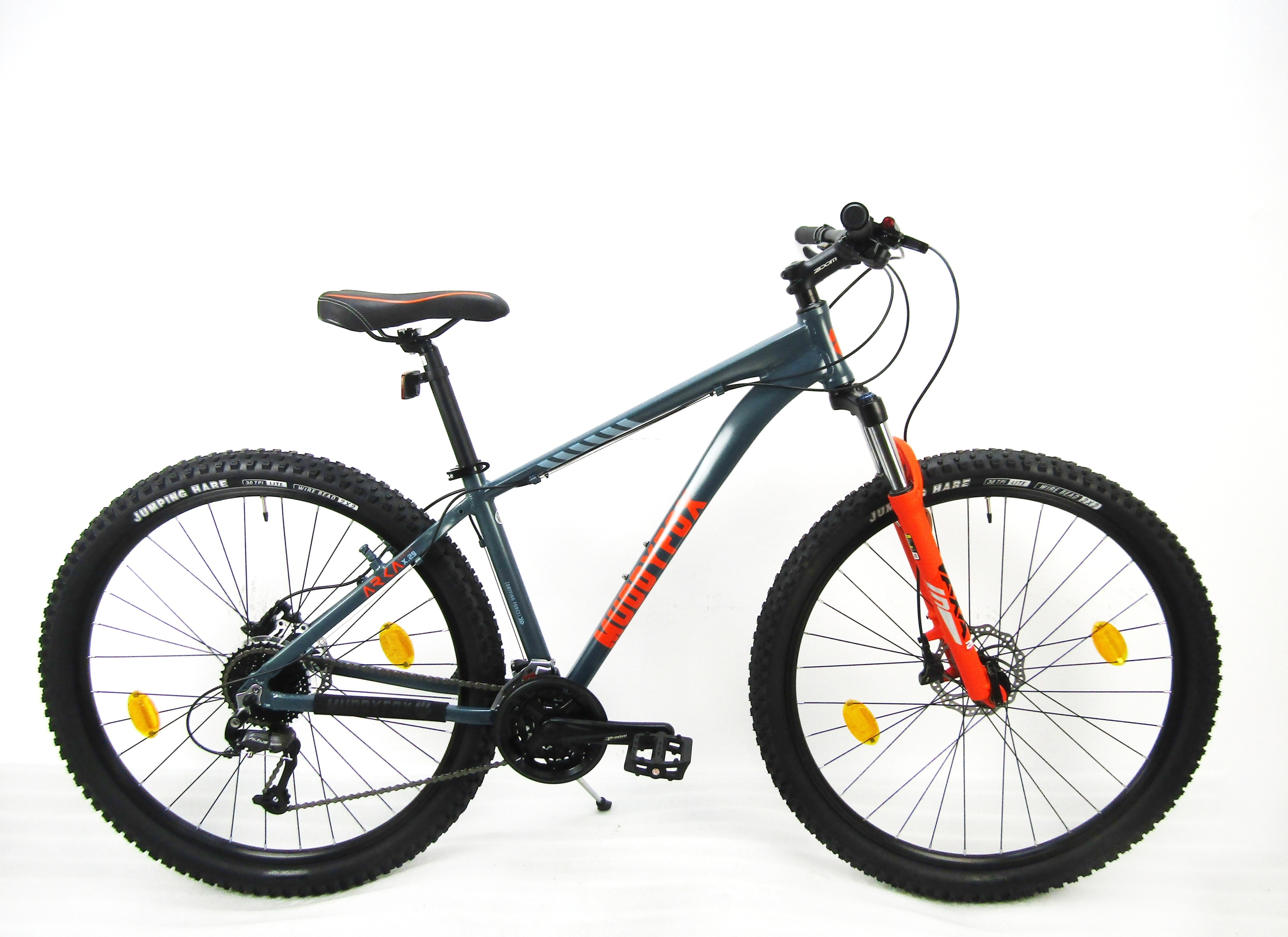

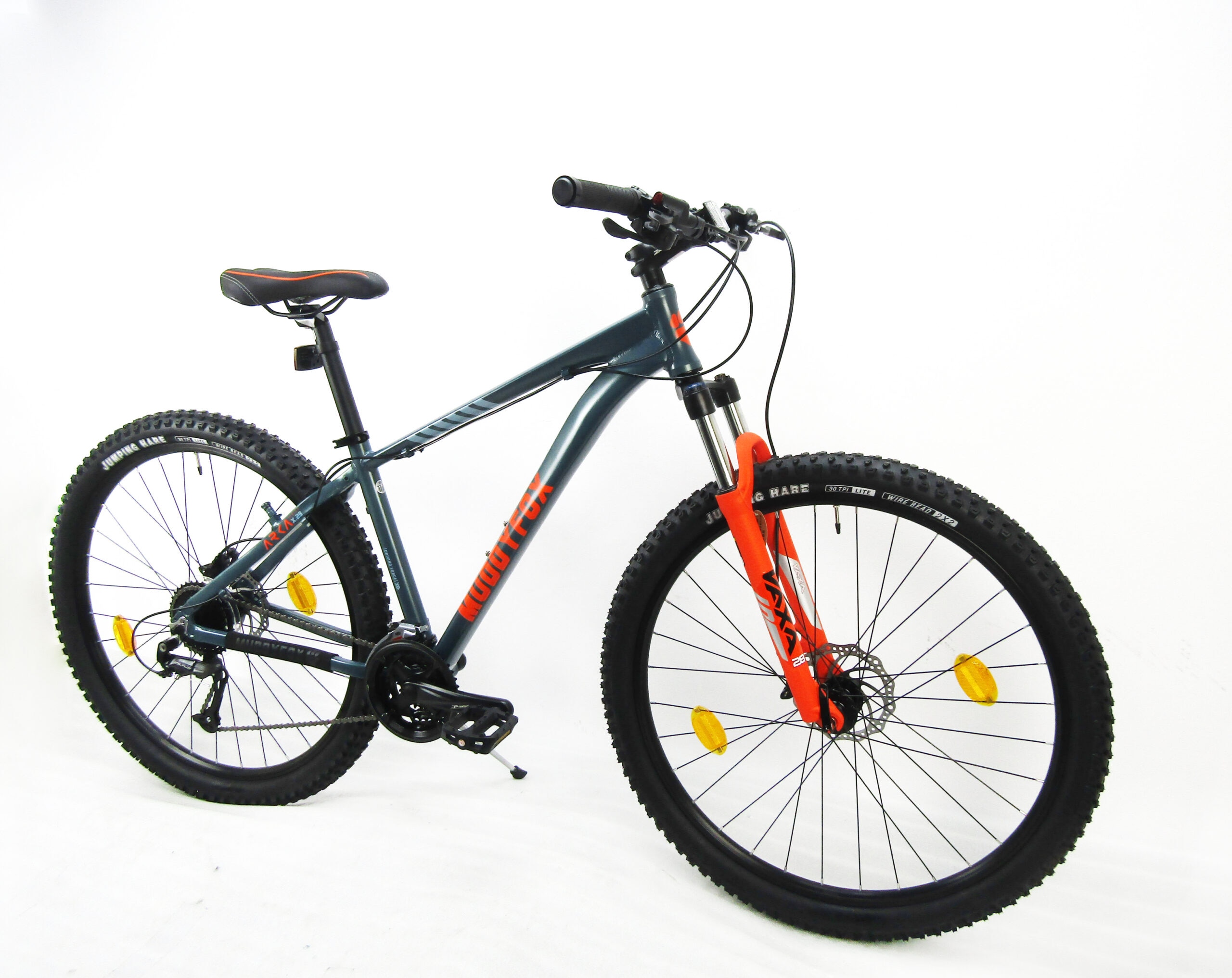

MUDDYFOX ARKA X.29 [STONE BLUE]

Sizes

29 inches, frame M, L

Colours

STONE BLUE

Frame Material

Alloy hardtail frame

Tire Size

29“

Tire

BC TIRE - 29x2.25 W-3102 FULL BLACK , 30TPI,SKINWALL,WIRE BEAD

Chain

Outer sheet is CP, on-chip is grey 12*332”*114L (Material : Steel) (Size : 1/2*3/32“) (Links : 114)

Gear

Shimano Altus M370 27-speed

Fork

Alloy suspension fork with hydraulic lock-out (100mm travel)

Front Derailleur

FD-M370, ALTUS, TOP-SWING, DUAL-PULL, FOR REAR 9-SPEED, BAND TYPE(34.9MM), CS ANGLE: 66-69, FOR 44/48T, CL:50MM

Headset

STEEL A HEADSET 1-1/8”*34*30MM,H:22.5MM,ALLOY BLK CAP

Rear Derailleur

RD-M370-L, ALTUS, SGS 9-SPEED, DIRECT ATTACHMENT, BLACK

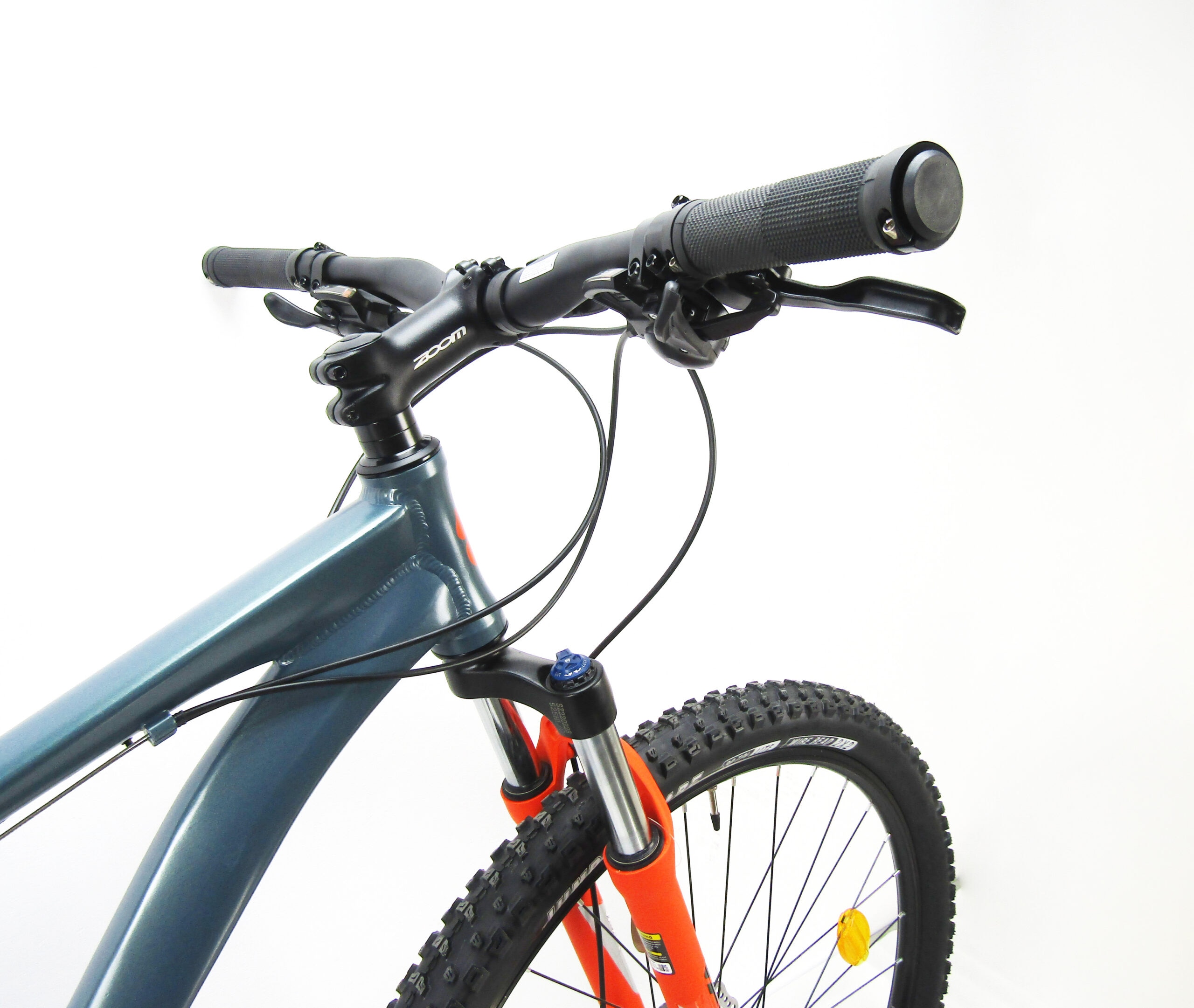

Handlebar

STEEL 22.2*25.4*660MM,1.4T,R:30MM,BACK 6DEGREE. (Material :Steel)

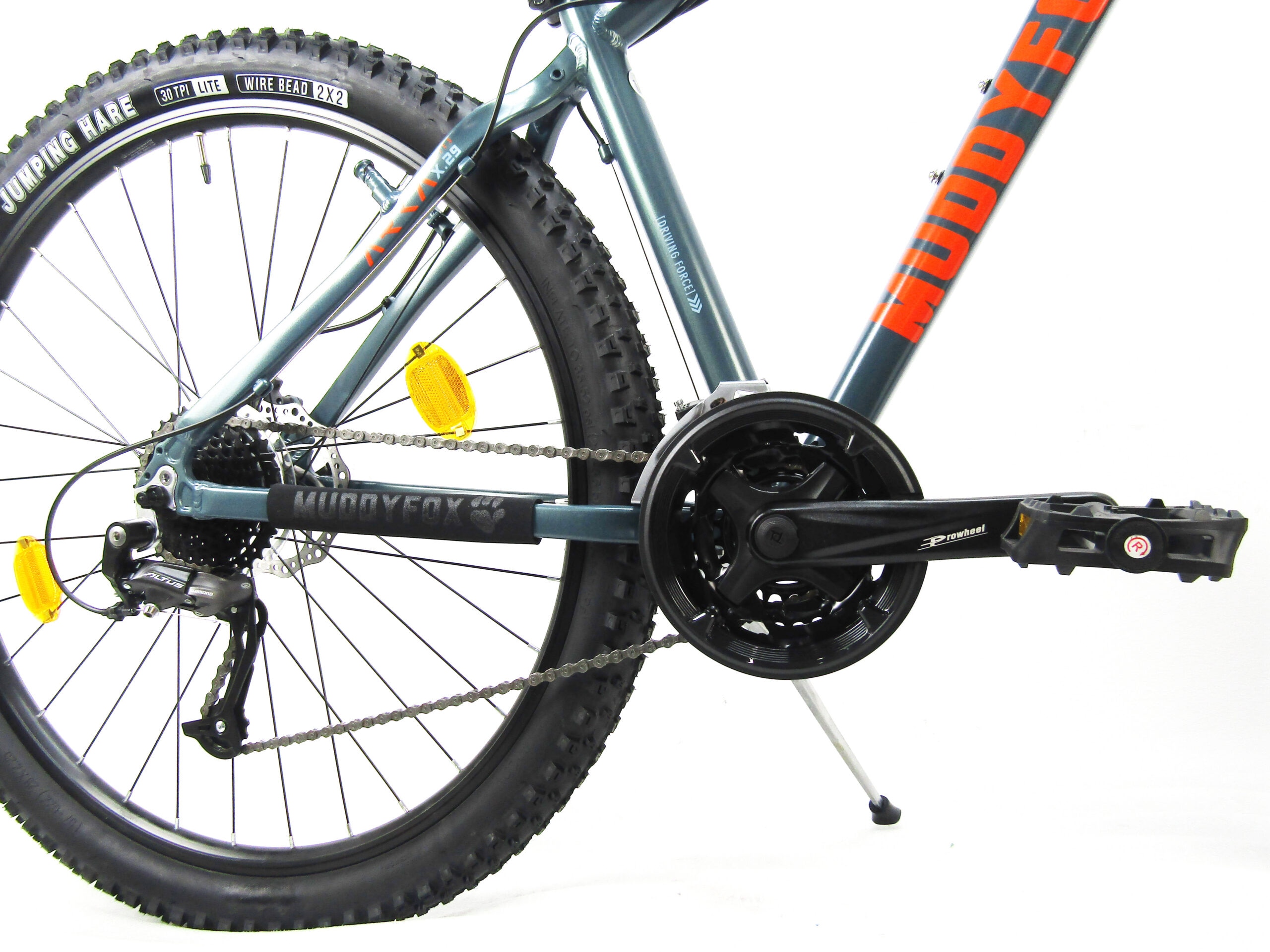

Crankset

STEEL 1/2“*1/8”*40T BLK,W/STEEL S02 170MM*9/16“ BLK CRANK

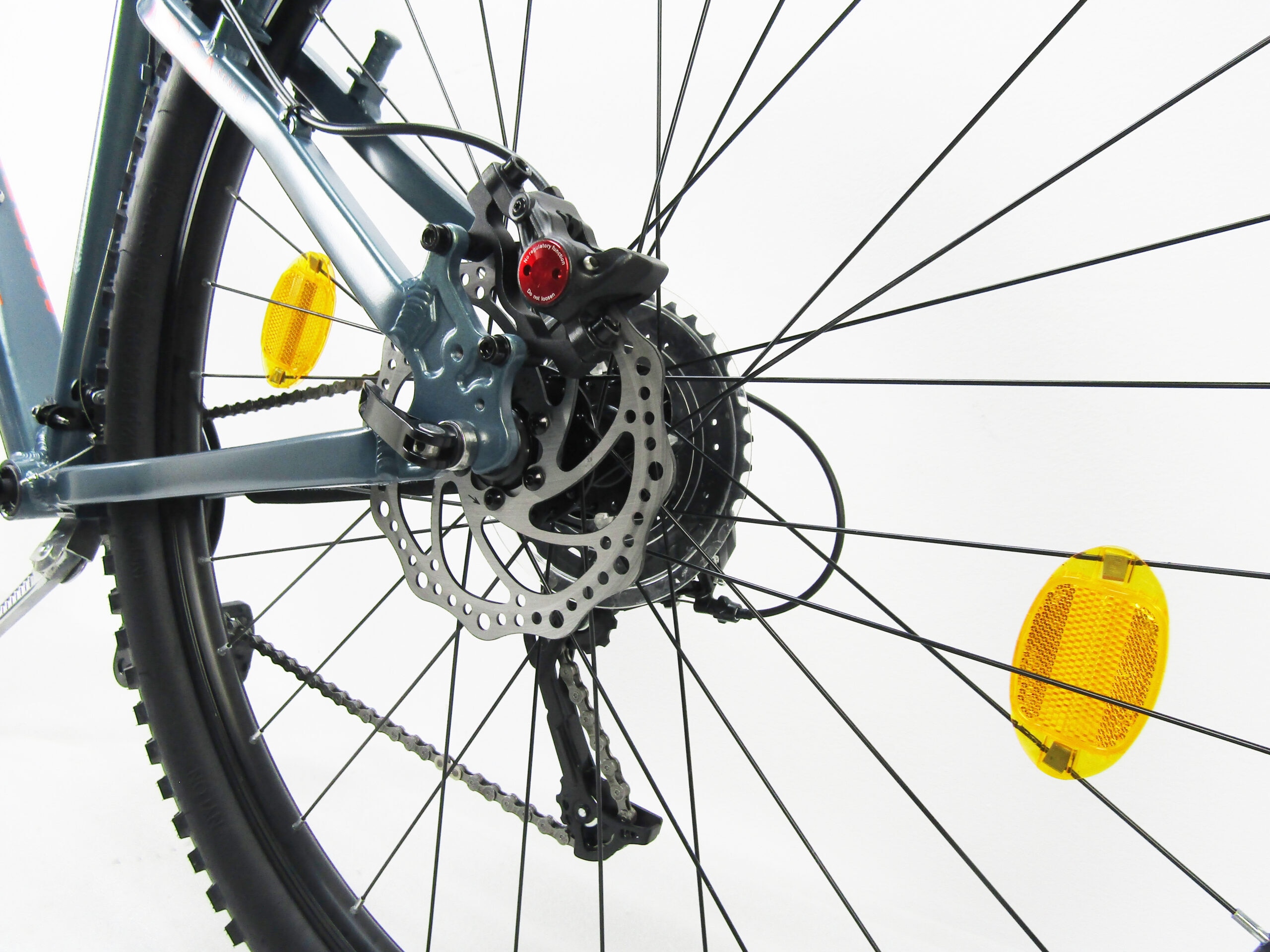

Brakes

Zoom hydraulic disc brakes

pedals

PP MTB TYPE 9/16” AXLE,W/BALL AND BS REF (Material : PP)

Cassette

9 Speed

Brake Lever

PP BLK BKT/ PP LEVER

Rims

29*1.75' DOUBLE WALL RIM, 32H*14G. WO CNC SIDE ， FV (Material : alloy) (Size : 29) (Nbr/Holes : 32H)

Bottom Bracket

bottom bracket axles,L:68mm*122MM

Domestic Warranty

Life-time warranty on frame, 6 months on components against manufacturing defects. Accident, wear and tear damage not covered.

Shifters

SHIFT LEVER, SL-M2010-L, ALTUS, LEFT, 3-SPEED RAPIDFIRE PLUS 1800MM INNER, W/ OPTICAL GEAR DISPLAY
