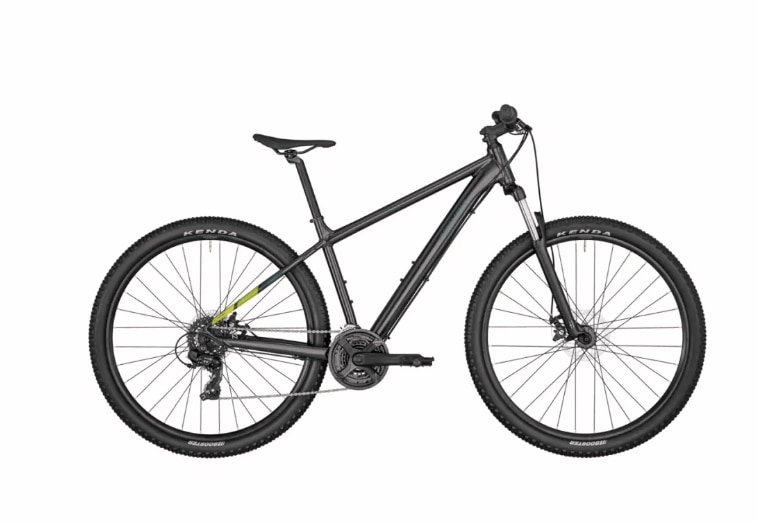

BERGAMONT REVOX 2

FRAME

29 inches (27.5 inches), lite AL-6061 tubing

FORK

Zoom 565 disc, 100 mm

REAR DERAILLEUR

Shimano RD-TY300

FRONT DERAILLEUR

Shimano FD-TY500

SHIFTERS

Shimano SL-RV200, 3x7-speed, revo-shifter

CRANKSET

Prowheel, 42/34/24t

bb-set

Sealed cartridge, BSA

BB-SET

Sealed cartridge, BSA

CHAIN

KMC Z7

CASSETTE

Sunrace CS-M40, 11-34t

BRAKE LEVERS

Tektro, Alloy

BRAKES

Tektro MD-M280, mechanical disc brake

ROTOR

Tektro TR-160-24, 160 mm

HANDLEBAR

BGM Comp, riserbar, width: 700 mm

Handlebar Stem

BGM Comp, +/-6°

SEATPOST

BGM Comp

SEAT

Syncros Tofino 2.5

HEADSET

BGM FP-H807B, A-Headset, semi-integrated, 1 1/8″

Front Hub

BGM Comp, 6-bolt, disc, quick release

Rear Hub

BGM Comp, 6-bolt, disc, quick release

Spokes

steel, black

Rims

Alex X20, disc, width: 20 mm

Front Tire

Kenda Booster, 29x2.40″ (27.5x2.40″)

Tube: Maxxis SV29 (29″)

tires

Front Tire: Kenda Booster, 29x2.40″ (27.5x2.40″)

Rear Tire: Kenda Booster, 29x2.40″ (27.5x2.40″)

Rear Tire

Kenda Booster, 29x2.40″ (27.5x2.40″)

Tube: Maxxis SV27 (27.5″)

approx weight in kg

14,5 kg

Pedals

Feimin FP-803

APPROX WEIGHT IN KG

14,5

COLOR

shiny flaky black

Freewheel

Sunrace CS-M40, 11-34t

GRIPS

BGM Comp

Tubes

Maxxis SV29 (29″) / Maxxis SV27 (27.5″)

MAX SYSTEM WEIGHT

115,0 kg

The overall weight includes the bike, the rider, the equipment and possible additional luggage.

max system weight

Bike, rider and luggage max. 115 kg

Model name

Revox

approx weight

10-15 Kg

Country Of Origin

Cambodia
