VAN NICOLAS ZEPHYR TITANIUM ROAD DISC FRAMESET

VAN NICHOLAS TITANIUM - Step into our world

Discover our high performance bikes, frames, state-of-the-art components and accessories, and technologically advanced apparel, all with the unmistakably timeless Van Nicholas aesthetic and commitment to high quality craftsmanship, durability and performance. If cycling means more to you than following the latest fashions; if you consider your bicycles to be life-long companions, not your latest toy; if you believe form and function are of equal importance, then we have just what you’ve been looking for.

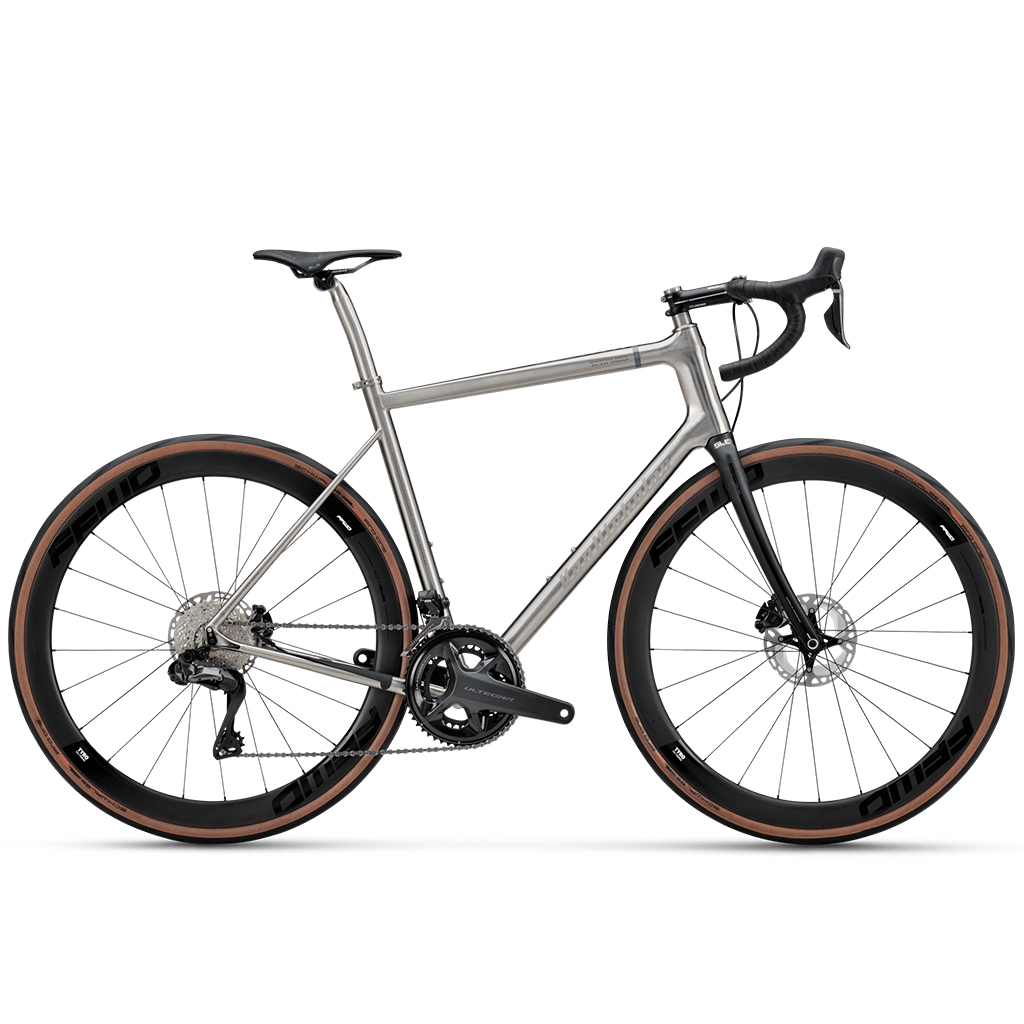

ZEPHYR - Elite Endurance

Designed to keep you fresh in the saddle for a full day’s competing, this finely poised racer places comfort at the forefront, and delivers exceptional handling and power transfer in the sprint. Suitable for 35-622 (700x35C) tires.

The legendary vibration-damping qualities of titanium already offer significant performance and comfort advantages, with the thin, supple stays helping to soak up a lot of the road ‘buzz’ you would experience with other frame materials, but by re-working the geometry to accommodate larger volume road tires (up to 35mm), we have added another level of comfort to help iron out the lumps and bumps of any road surface.

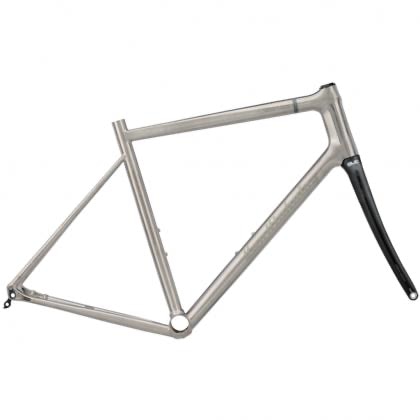

Scope of Supply:

Frame: 1880 grams (L-57cm)

SLE carbon front fork (429gm)

Tange headset

Not included: Shimano SM-AX720 100x12mm (front) and 142x12mm (rear) thru-axles.

Specifications:

Lifetime Frame Warranty

Head Tube Logo: Engraved; Original Van Nicholas

Frame Finish: Brushed; Natural brightness

Frame Tubing: Hydroformed; Liquid versus Titanium

Dropout: 3D Casted

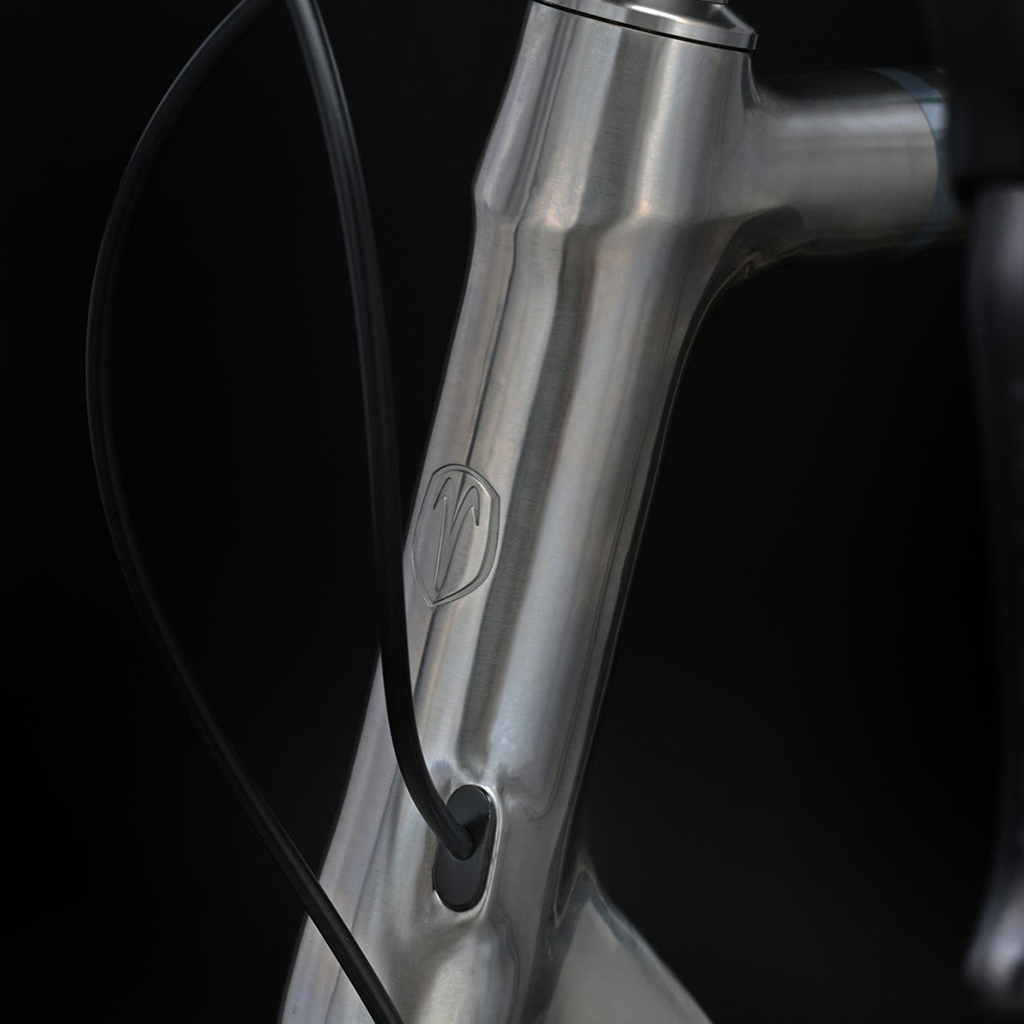

Cable routing: Internal; Clean aesthetics

Drivetrain: Mechanical & Electronic Shifting compatible

Brake: Disc brake; All-weather braking

Feature: 3D Casted Head Tube and Bottom Bracket

Thru-Axle: High performance rigidity

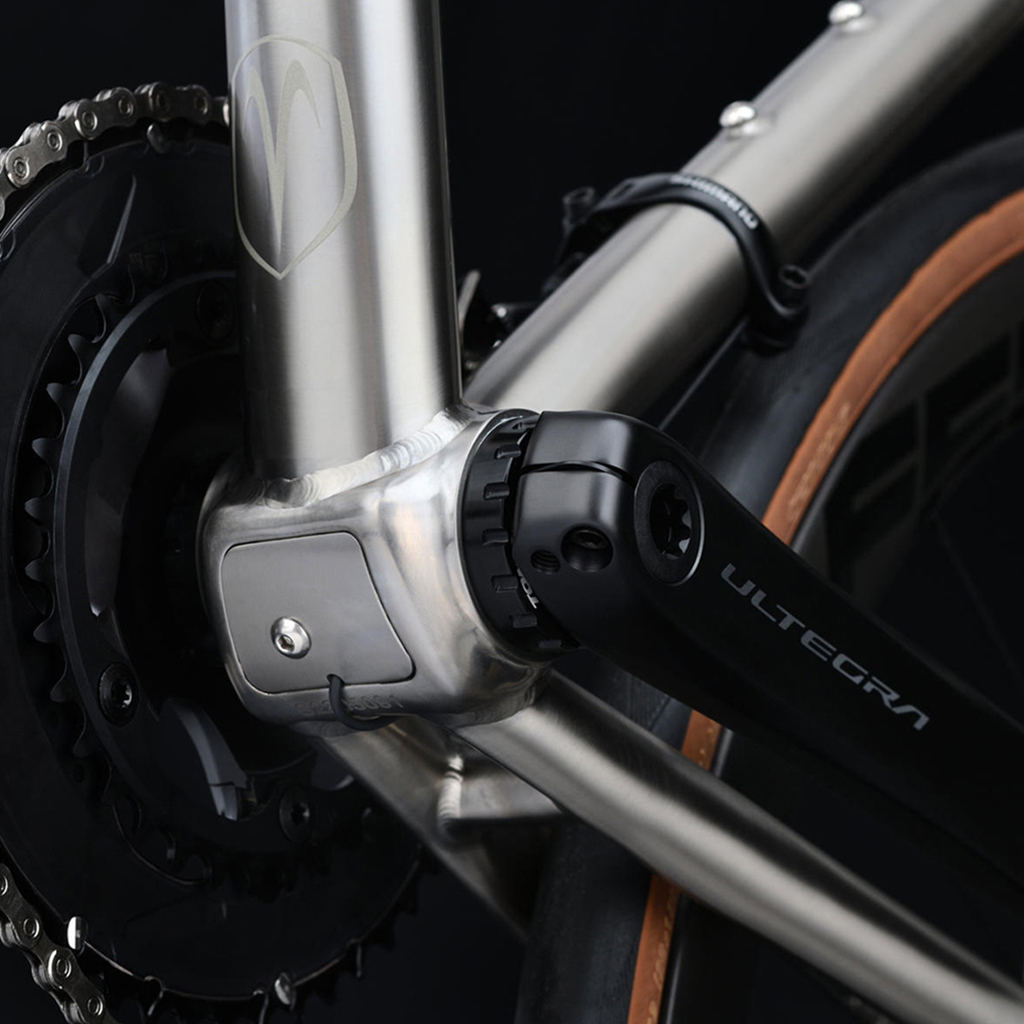

Bottom Bracket: T47 (68mm); best of both worlds

Seat Post Diameter: 31.6mm

Front Derailleur: 34.9mm Clamp On

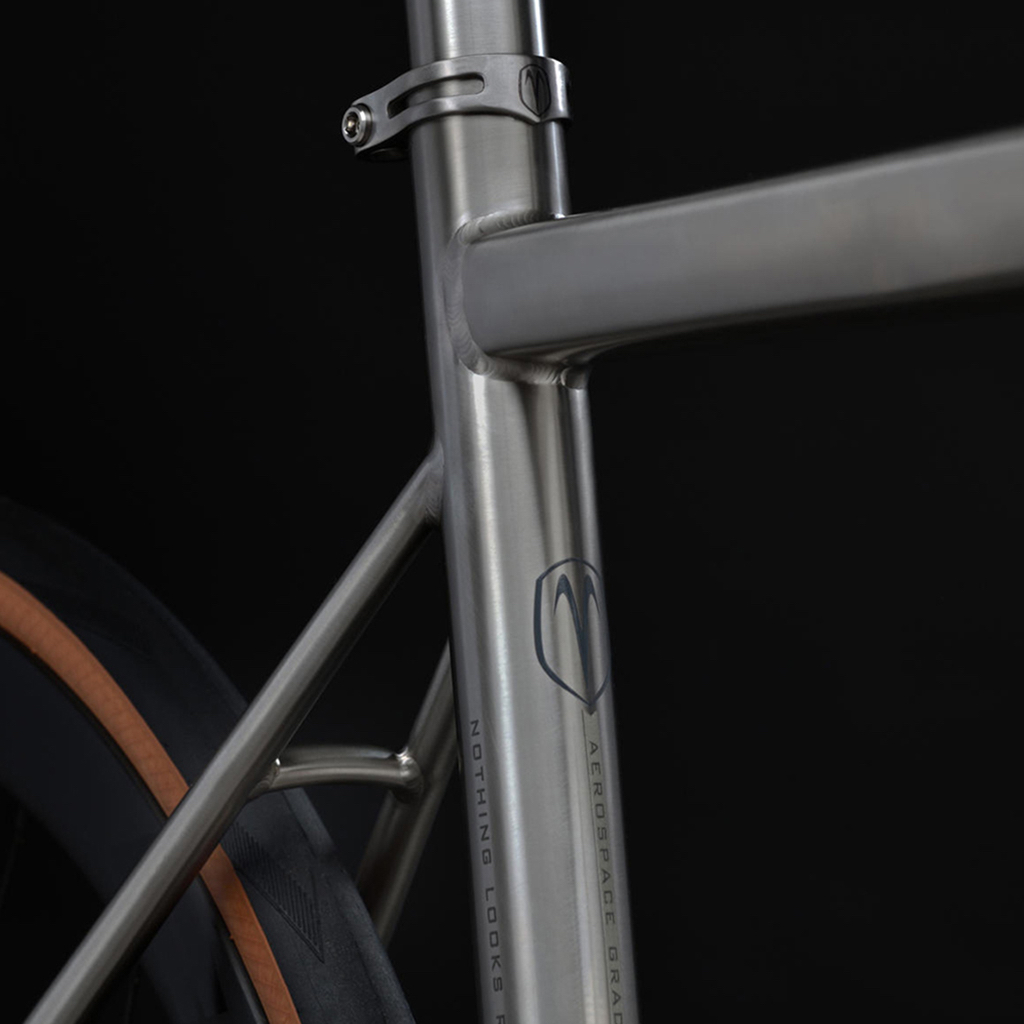

Seat Post Collar Diameter: 34.9mm

Headset: 1-1/8" 45.0/41.2 mm (OD/ID) Integrated Headset; Lighter, stiffer

Hub spacing: 142.0 x 12 mm Rear Hub Spacing

6.0/8.0 mm CNC AL-6061-T6 Replaceble Derailleur hanger

Maximum 35-622 (28 x 1.35, 700x35C) Tire Clearance

Sizing Information

Size XS S M L XL

Effective Frame Size 480 510 540 570 600

Seat Tube Length (CTT) 450 480 510 540 570

Seat Tube Length (CTC) 410 440 470 500 530

Effective Top Tube (Eff TT) 512 521 537 558 576

Actual Top Tube (Act TT) 495 504 518 537 552

Head Tube Angle (HA) 71 71.5 72 72.5 73

Seat Tube Angle (SA) 74.5 74 73.5 72.5 72

Head Tube Length (HT) 135 145 165 185 210

Wheel Base (WB) 986 986 993 998 1005

Front Centre (FC) 573 573 579 584 591

Bottom Bracket Drop (BB Dr.) 75 75 75 75 75

Chain Stay Length (CS) 425 425 425 425 425

Fork Rake (Rake) 43 43 43 43 43

Weight (Lbs) 3.87 4.01 4.03 4.19 4.34

Weight (Kgs) 1.76 1.82 1.83 1.90 1.97

Stack 546 556 577 598 623

Reach 361 362 366 370 373

Standover 724 747 771 797 822
