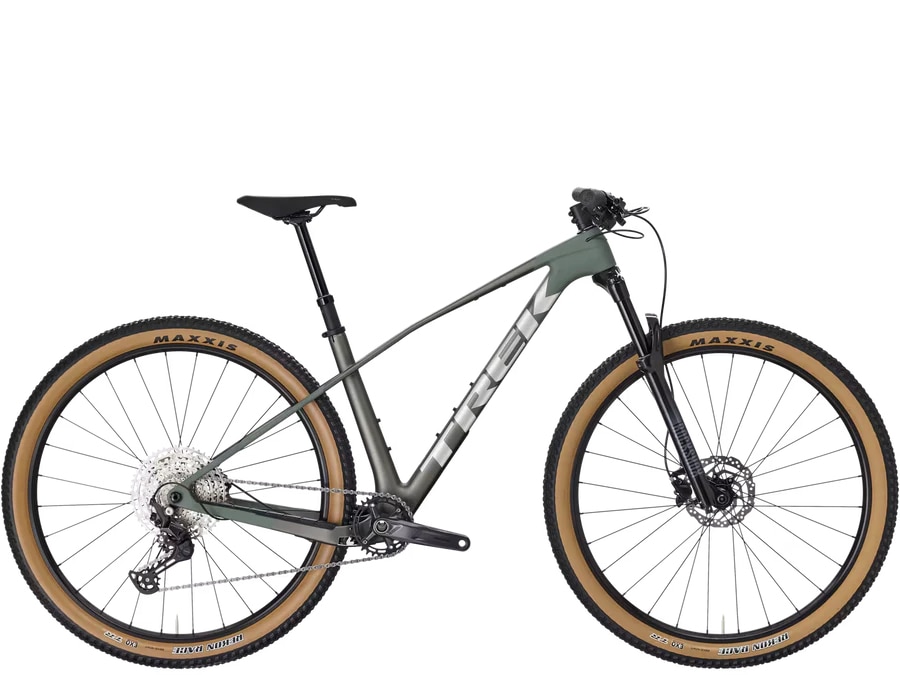

TREK PROCALIBER 9.5 GEN 3

Description

Frame OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148 Fork RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel Wheels Hub front Shimano TC500 alloy, CentreLock, 110x15 mm thru axle Hub rear Shimano TC500 alloy, CentreLock, 148x12 mm thru axle Skewer rear Bontrager Switch thru axle, removable lever Rim Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve Tyre Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40' Tyre part Bontrager TLR sealant, 180 ml/6 oz Rim strip Bontrager TLR Max tyre size Frame: 29x2.40', Fork: See manufacturer Drivetrain Shifter Shimano Deore M6100, 12-speed Rear derailleur Shimano Deore M6100, long cage *Crank Size: S, M, ML Shimano MT512, 32T, 55 mm chain line, 170 mm Size: L, XL Shimano MT512, 32T, 55 mm chain line, 175 mm Bottom bracket Shimano MT500, 92 mm, PressFit Cassette Shimano Deore M6100, 10-51, 12-speed Chain Shimano Deore M6100, 12-speed Max. chainring size 1x: 38T Components Saddle Verse Short, chromoly rails, 145 mm width *Seatpost Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length Size: M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length *Handlebar Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width *Grips Size: S, M, ML, L Bontrager XR Trail Comp, nylon lock-on Size: S, M, ML, L, XL Trek Line Comp, nylon lock-on *Stem Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Head set FSA IS-2, 1-1/8' top, 1.5' bottom Brake Shimano MT200 hydraulic disc *Brake rotor Size: S, M, ML, L, XL Shimano RT10, CenterLock, 160 mm Size: L, XL Shimano RT10, CenterLock, 180 mm Brake Set Shimano MT200 hydraulic disc Rotor size Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer Accessories Tool Bontrager Switch thru axle, removable lever Weight Weight M – 12.13 kg/26.75 lb (with TLR sealant, no tubes) Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
