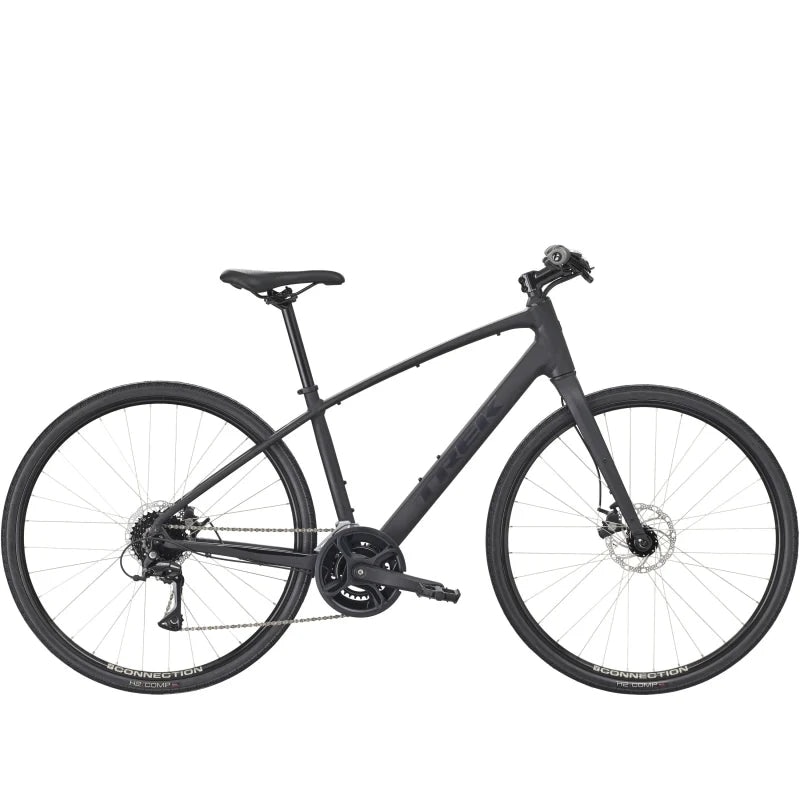

TREK FX 1 GEN 4

Description

Frame Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR Fork FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR Wheels Hub front Formula DC-20, alloy, 6-bolt, 100x5 mm Skewer front 139x5 mm bolt-on Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm Skewer rear 152x5 mm QR Tyre Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm Drivetrain *Shifter Size: XS, S, M, L, XL Shimano EF500, 8-speed Size: XS, S, M, L, XL Shimano EF500, 2-speed Front derailleur Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull Rear derailleur Shimano Acera M3020-8, 40T max cog Crank Forged alloy, 46/30, 170 mm length Bottom bracket Sealed cartridge, 68 mm Cassette Shimano 8-speed, 12-32T Chain KMC Z8.3 Pedal Wellgo nylon platform Components Saddle Bontrager Sport *Seatpost Size: XS, S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length Size: L, XL Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length *Handlebar Size: XS, S, M, L Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width Size: XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width Grips Trek Ergonomic Comp, lock-on *Stem Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length Brake Tektro MD-U310 mechanical disc Brake rotor Tektro wave, 6-bolt, 160 mm Weight Weight M - 13.00 kg / 28.67 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
