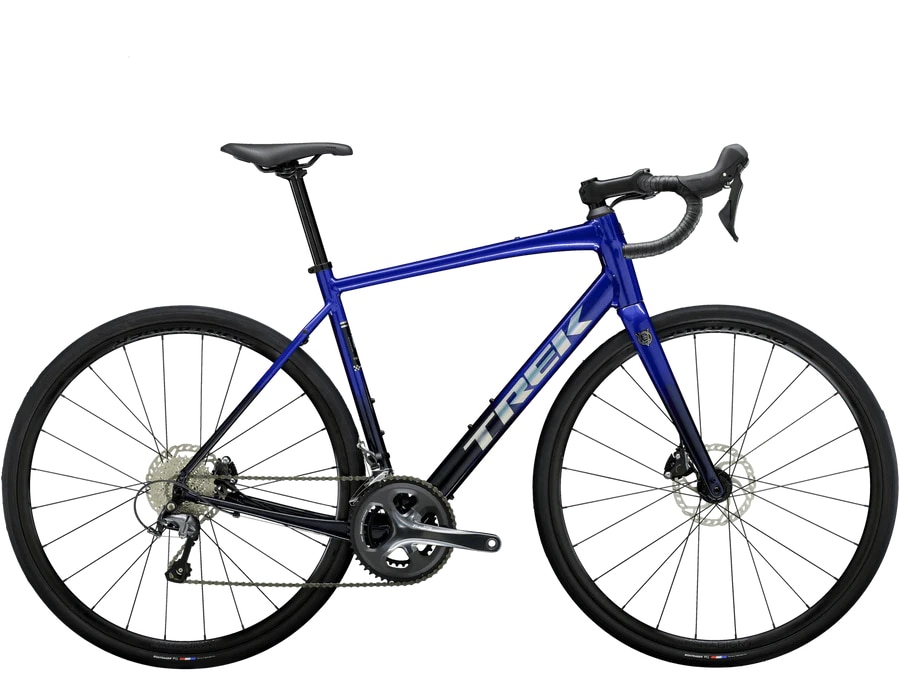

TREK DOMANE AL 4 GEN 4

Description

Frame 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle Weight Weight 56 - 10.35 kg / 22.82 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). Drivetrain Shifter Shimano Tiagra R4720, 10-speed Front derailleur Shimano Tiagra 4700, 31.8 mm clamp Rear derailleur Shimano Tiagra 4700, long cage, 34T max cog Crank Size: 49, 52 Shimano Tiagra 4700, 50/34, 170 mm length Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5 mm length Size: 58 Shimano Tiagra 4700, 50/34, 175 mm length Bottom bracket Shimano RS501 BSA Cassette Shimano 10-speed, 11-32T Chain Shimano Tiagra HG54, 10-speed Max. chainring size 1x: 50T, 2x: 50/34 Wheels Hub front Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle Skewer front Bontrager Switch chamfered thru axle Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle Skewer rear Bontrager Switch chamfered thru axle, removable lever Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve Spokes 14 g stainless steel, black Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm Components Saddle Verse Short, steel rails, 145 mm width Seatpost Size: 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length Size: 52, 54, 56, 58 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length Handlebar Size: 49 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size: 49 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width Size: 54, 56 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width Size: 58 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width Size: 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width Handlebar tape Bontrager Supertack Perf tape Stem Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Brake Shimano Tiagra hydraulic disc, flat mount Brake rotor Shimano RT66, 6-bolt, 160 mm Rotor size Max brake rotor sizes: 160 mm front and rear
