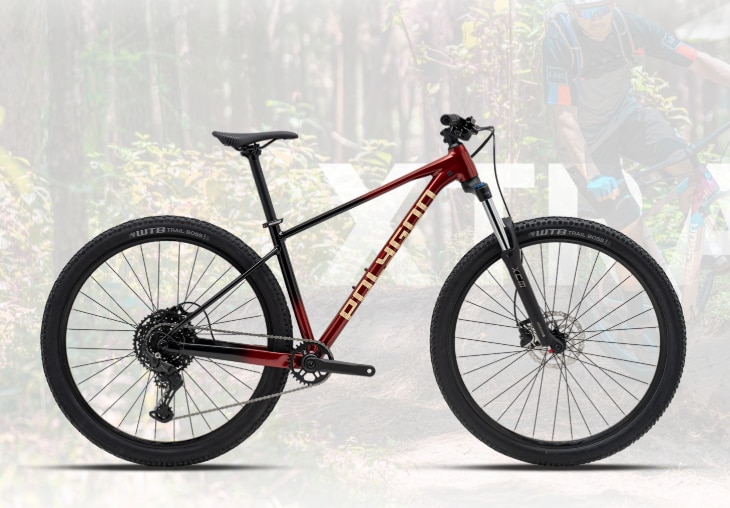

POLYGON XTRADA 5

Frameset

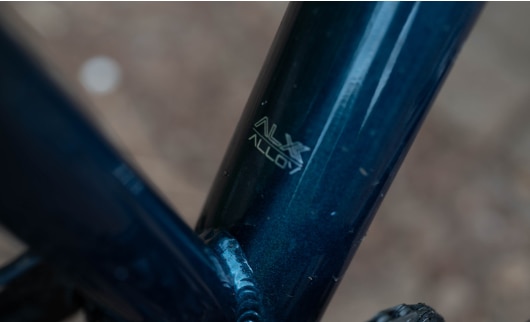

ALX XC 29“

Fork

SUNTOUR XCM 32 120MM TRAVEL BOOST THRU AXLE

Rear Shock

-

Frame Color

RED BLACK

Decal Color

GOLD BLACK

Shifter

SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER

Crank

PROWHEEL RMZ-MD25S-TT 32T 170mm

Cassette

SHIMANO CS-LG300 10-SPEED 11-48T

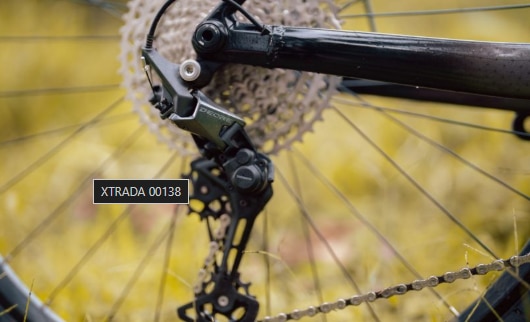

Rear Derailleur

SHIMANO CUES RD-U6000 DIRECT ATTACH

BB

PROWHEEL 2 PIECE CRANKSET BSA THREADED

Chain

KMC X-GLIDE

Pedal

ONE PIECE PP BODY

Saddle

LINC VOID SADDLE, STEEL ø 7mm

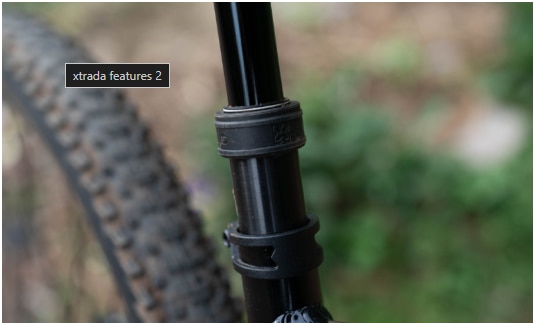

Seatpost

POLYGON SPORT SEATPOST, DXL: 30.9 x 350mm, OFFSET: 0mm, SEAT CLAMP: 34.9mm QR TYPE

Handlebar

POLYGON SPORT, W: 760mm, BB: 31.8mm, R/D: 20mm, B: 9degree

Handlestem

POLYGON SPORT, EXT: 40mm, BB: 31.8mm, R/D: 7degree

Headset

ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

Wheel Set

ALLOY WHEELS

Tire

WTB TRAIL BOSS 29”X2.25"

Rim

ALLOY DOUBLE WALL H: 19mm W: 23mm 32H FOR TYRE 622-68

Hub

F: ALLOY HUB THRU AXLE 15x110mm 32H CENTERLOCK / R: ALLOY HUB THRU AXLE 12x148mm 32H CENTERLOCK

Spokes

F: 14G STAINLESS NDS: 294mm DS: 292mm 12MM NIPPLE BRASS / R: 14G STAINLESS NDS: 292mm DS: 290 12MM NIPPLE BRASS

Brake Lever

SHIMANO BL-MT200

Brake Caliper

SHIMANO MT200 HYDRAULIC DISC BRAKE

Rotor

SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK
