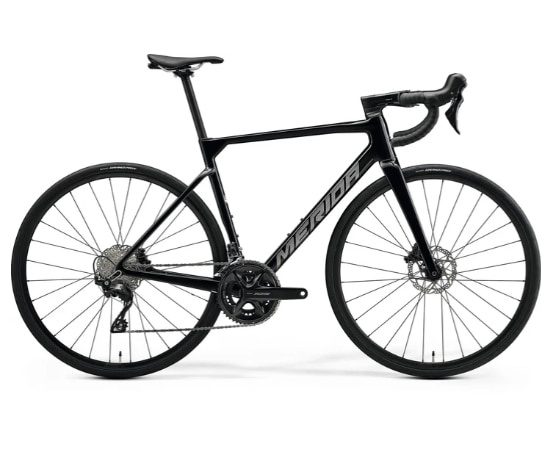

MERIDA SCULTURA 4000 (METALLIC BLACK)

KEY FEATURES:

Frame: SCULTURA CF3 V, carbon, 700x30C max, 100x12/142x12mm thru-axle, Pressfit 86.5

Fork: SCULTURA CF3 DISC, carbon, 700x30C max

Shock: N/A - rigid road fork

Bottom Bracket: Shimano SM-BB71-41B, Pressfit 86.5

Chain: Shimano M6100-12

Crank: Shimano 105 R7100, 50-34T, 160mm (3S), 165mm (XXS/XS), 170mm (S/M), 172.5mm (L/XL)

Shift Levers: Shimano 105 disc

Cassette: Shimano 105 R7101, 11-34T, 12-speed

Front Derailleur: Shimano 105

Rear Derailleur: Shimano 105, GS

Grip/Tape: Merida Road Expert

Handlebar: Merida Expert SLII, aluminium, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL)

Stem: FSA SMR-II, aluminium, -10° angle, 90mm (3XS/XXS/XS), 100mm (S), 110mm (M/L), 120mm (XL)

Saddle: Merida Expert SL, 6% recycled and 23% nature material, V-mount

Seatpost: Merida Expert SL, 27.2mm diameter, 0mm setback, carbon

Front Brake: Shimano 105, hydraulic disc, Shimano RT54 rotor, 160mm

Rear Brake: Shimano 105, hydraulic disc, Shimano RT54 rotor, 160mm

Front Wheel: Merida Expert SL rim (17mm inner width, 22mm height, aluminium, tubeless ready), Shimano TC500 hub, 100x12mm, 28h,

Centerlock

Rear Wheel: Merida Expert SL rim (17mm inner width, 22mm height, aluminium, tubeless ready), Shimano TC500-HL hub, 142x12mm, 28h,

Centerlock
