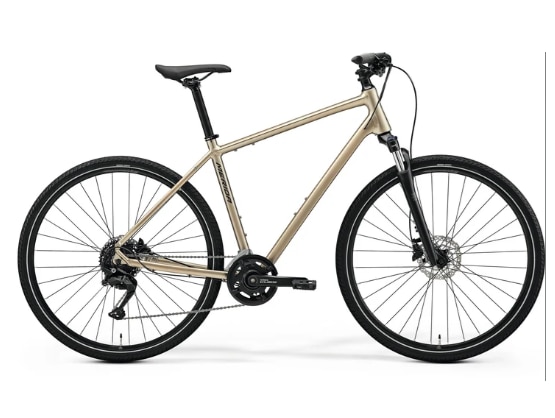

MERIDA CROSSWAY 100 HIGH CREAM (XSHORT)

KEY FEATURES:

Frame: CROSSWAY TFS IV material: aluminium 700x50C max. wheelsize 135x9mm axle standard BSA bottom bracket standard Crossway EQ-kit ready

Fork: SR Suntour NEX HLO Coil 63mm suspension travel Lockout 700x48C max. wheelsize

Shock: N/A - the fork provides front suspension; no rear shock

Bottom Bracket: Shimano BB-UN101 73mm

Chain: KMC xGlide

Crank: Shimano CUES U4000 40-26 teeth 170 mm-XXS/XS/S, 175 mm-M/XL

Shift Levers: Shimano CUES U4000

Cassette: Shimano LG300 11-36 teeth 9 speed

Front Derailleur: Shimano CUES U4000

Rear Derailleur: Shimano CUES U3020 SGS

Grip/Tape: MERIDA COMP TK

Handlebar: MERIDA COMP CC material: aluminium 680mm width 15mm rise

Stem: MERIDA COMP CC material: aluminium 31.8mm diameter 17 degree rise 90mm length

Saddle: MERIDA COMP TK

Seatpost: MERIDA COMP CC material: aluminium 30.9mm diameter 5mm setback

Front Brake: Shimano MT200 2 piston

Rear Brake: Shimano MT200 2 piston

Front Wheel: MERIDA COMP TK 20mm inner width 17mm height material: aluminium, Shimano QC300 100x9mm width 32 spoke holes

Centerlock

Rear Wheel: MERIDA COMP TK 20mm inner width 17mm height material: aluminium, Shimano QC300-HM 135x9mm width 32 spoke holes Centerlock

Front Tire: Kenda Ambra K1278 700x45C wire reflective stripe

Rear Tire: Kenda Ambra K1278 700x45C wire reflective stripe

Pedal: VP VPE-889P
