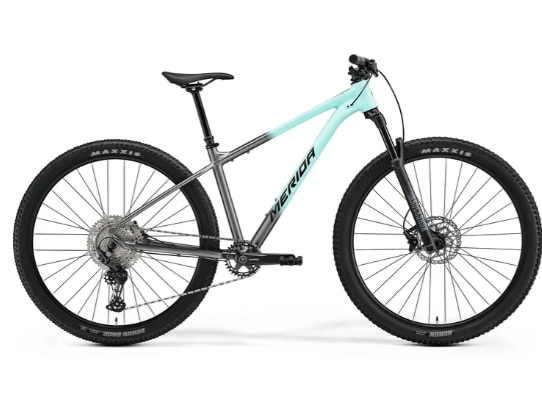

MERIDA BIG NINE 400 SILK TEAL (S/M/L)

KEY FEATURES:

Frame: BIG.NINE TFS V, aluminium, 29“, 135x9mm axle standard, BSA bottom bracket standard, smooth welding, clearance for 2.4” tyres

Fork: RockShox Judy Gold RL, air spring, 120mm travel, tapered steerer, lockout, 51mm offset

Shock: N/A - hardtail, no rear suspension

Headset: FSA NO.55R/57

Bottom Bracket: Shimano MT500

Crank: Shimano CUES U6000, 32T, 170mm all sizes

Chain: KMC xGlide

Shift Levers: Shimano SL-MT500-IL / Shimano CUES U6000

Cassette: SunRace CS-UX700 EA5 (ZX11), 10-50T, 11-speed, Linkglide

Rear Derailleur: Shimano CUES U6000, GS

Grip/Tape: Merida Comp TR

Handlebar: Merida Expert CC, aluminium, 10mm rise, S: 720mm, M/L: 740mm, XL/XXL: 760mm width

Stem: Merida Comp CC, aluminium, 31.8mm diameter, 7° angle, S: 50mm, M-L: 60mm, XL-XXL: 70mm

Saddle: Merida Comp SL, V-mount

Seatpost: Merida Comp TR IV, 30.9mm diameter, 0mm setback, S: 125mm, M/L: 150mm, XL/XXL: 175mm travel

Seat Clamp: Merida Comp QR

Front Brake: Shimano M4100, 2-piston hydraulic disc, Shimano RT10 180mm rotor

Rear Brake: Shimano M4100, 2-piston hydraulic disc, Shimano RT10 160mm rotor

Front Wheel: Merida Comp CC II rim (25mm inner width, aluminium, tubeless ready), Shimano QC300 hub, Centerlock, 32h

Rear Wheel: Merida Comp CC II rim (25mm inner width, aluminium, tubeless ready), Shimano QC300-HM hub, Centerlock, 32h

Tyres: Maxxis Rekon Race, 29x2.4" front and rear
