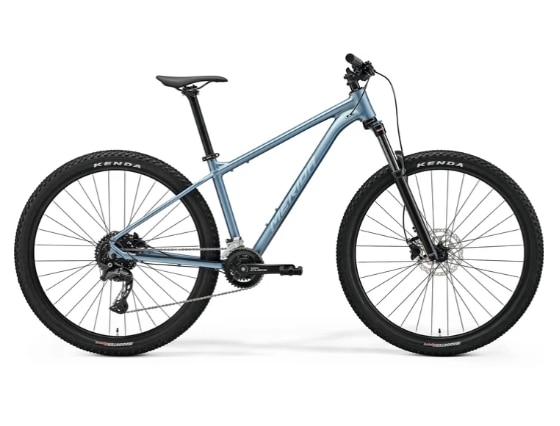

MERIDA BIG NINE 300 STEEL BLUE (SMALL)

KEY FEATURES:

Frame: BIG.NINE TFS V, aluminium, 29“, 135x9mm axle standard, BSA bottom bracket standard, smooth welding, clearance for 2.4” tyres

Fork: SR Suntour XCR, air spring, 120mm travel

Shock: N/A - hardtail, no rear suspension

Bottom Bracket: Shimano MT500

Crank: Shimano CUES FC-U4000, 36-22T, 170mm all sizes

Shift Levers: Shimano CUES SL-U4000 (front), SL-U6000 (rear)

Cassette: Shimano CUES CS-LG300, 11-39T, 10-speed

Front Derailleur: Shimano CUES FD-U4000

Rear Derailleur: Shimano CUES RD-U6020, SGS

Grip/Tape: Merida Comp TR

Handlebar: Merida Expert CC, aluminium, 10mm rise, 720-760mm width by size

Stem: Merida Comp CC

Saddle: Merida Comp SL, V-mount

Seatpost: Merida Comp CC, aluminium, 30.9mm diameter, 0mm setback

Front Brake: Shimano MT200, 2-piston hydraulic disc, 180mm rotor

Rear Brake: Shimano MT200, 2-piston hydraulic disc, 160mm rotor

Front Wheel: Merida Comp CC II rim (25mm inner width, aluminium, tubeless ready), Shimano QC300 hub, Centerlock, 32h

Rear Wheel: Merida Comp CC II rim (25mm inner width, aluminium, tubeless ready), Shimano QC300-HM hub, Centerlock, 32h

Weight: ~13.5 kg
