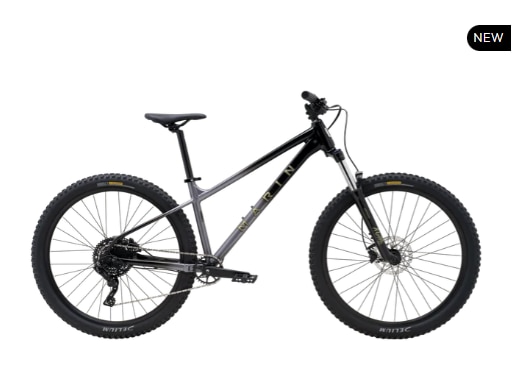

MARIN SAN QUENTIN 1

Frame: Series 2 6061 aluminium, double butted, 141mm open rear dropout, 73mm threaded BB

Fork: SR Suntour XCM34, Boost 15x110mm, 130mm travel, coil spring, bolt-on thru-axle

Shock: N/A - hardtail, no rear suspension

Bottom Bracket: Sealed cartridge, square taper

Chain: KMC X-9

Crank: Marin forged alloy, 170mm, 32T steel narrow-wide chainring, Boost spacing

Shift Levers: microSHIFT SL-M9195-R, 1x9

Cassette: SunRace, 9-speed, 11-46T

Front Derailleur: N/A - 1x drivetrain

Rear Derailleur: microSHIFT RD-M9195M, with clutch

Grip/Tape: Marin MTN grips, closed end

Handlebar: Marin mini-riser, 6061 aluminium, 780mm width, 28mm rise

Stem: Marin 3D forged alloy, 45mm

Saddle: Marin Speed Concept

Seatpost: Marin alloy, 30.9mm

Front Brake: Tektro M275 hydraulic disc, 180mm rotor

Rear Brake: Tektro M275 hydraulic disc, 180mm rotor

Front Wheel: Marin double-wall aluminium rim (29mm internal width), forged alloy hub (110x15mm), 32H, 14g black stainless spokes

Rear Wheel: Marin double-wall aluminium rim (29mm internal width), forged alloy hub (141mm QR), 32H, 14g black stainless spokes

Front Tire: 27.5/29x2.5“, wire-bead, tubeless-compatible

Rear Tire: 27.5/29x2.5”, wire-bead, tubeless-compatible

Pedal: Marin MTB plastic platform
