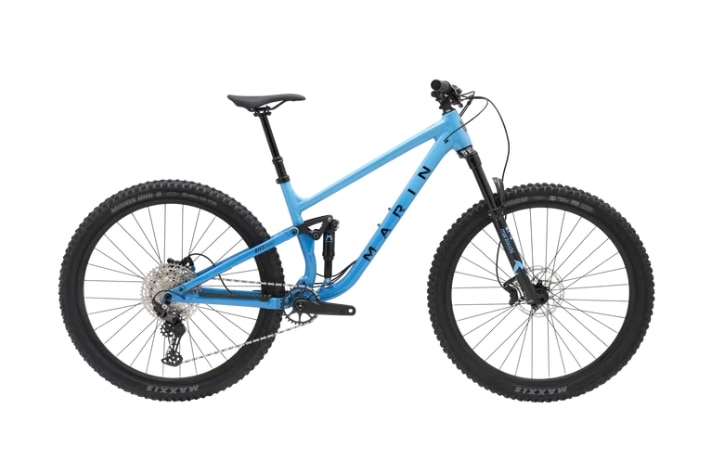

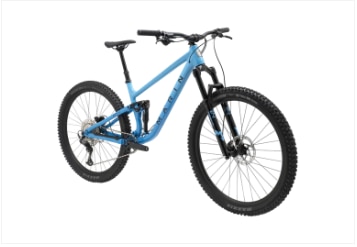

MARIN RIFT ZONE 2

Frame: Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm

Threaded BB w/ ISCG05 Tabs

Front Suspension: Marzocchi Bomber Z2 29“, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

Rear Suspension: Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount

Rim: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear: Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body

Hub Front: Shimano HF-MT500B, 110x15mm, Centerlock

Spokes: 14g Black Stainless Steel

Tires: Front- Maxxis Assegai MAXX GRIP, 2.5” EXO+ Rear- Maxxis Minion DHR II, MAXXTERRA, 2.5“ EXO+, Tubeless compatible

Derailleur Rear: Shimano Deore, 12-Speed, SGS

Shift Lever: Shimano Deore, 12-Speed, SL-M6100-R

Crankset: Marin Forged Alloy, Integrated Steel 30T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing

Bottom Bracket: External Sealed Cartridge Bearing

Chain: KMC X-12 Silver and Black

Cassette: Shimano, Deore M6100, 12-Speed, 10-51T

Brakes Front- Tektro M5140 Hydraulic, 200mm Rotor

Brakes Rear: Tektro M5140 Hydraulic, 180mm Rotor

Brake Levers: Tektro M5140 Hydraulic

Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 40mm Rise, 5º Up, 9º Back

Stem: Marin 3D Forged Alloy, 55mm

Grips: Marin Grizzly Lock On

Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost: Tranz-X YSI60QL Dropper Post, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM

Saddle: Marin Speed Concept

Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
