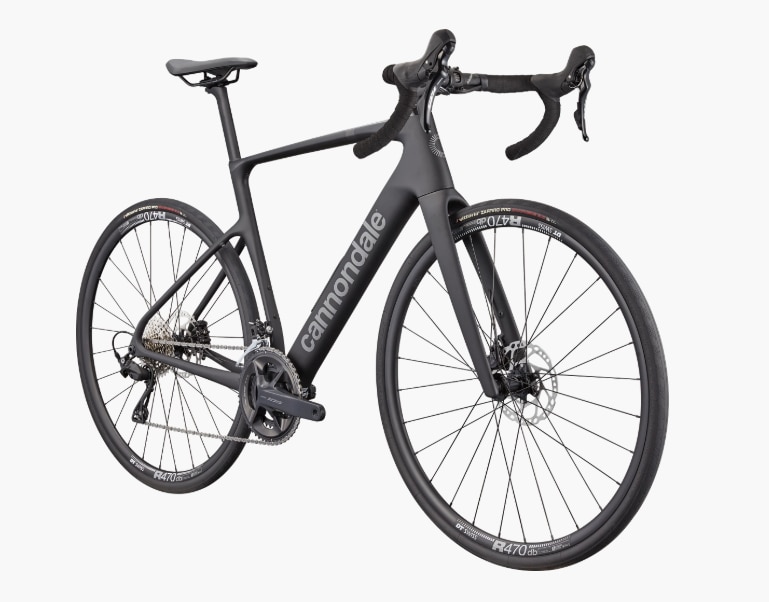

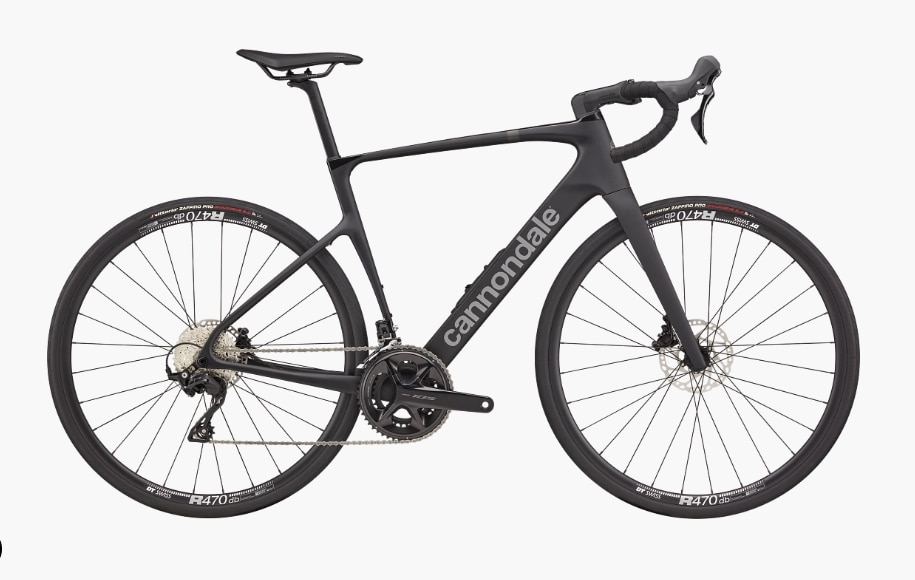

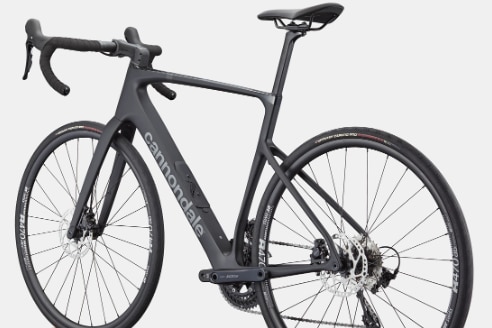

CANNONDALE SYNAPSE 5 (BLACK/48CM)

KEY FEATURES:

Frameset

Frame

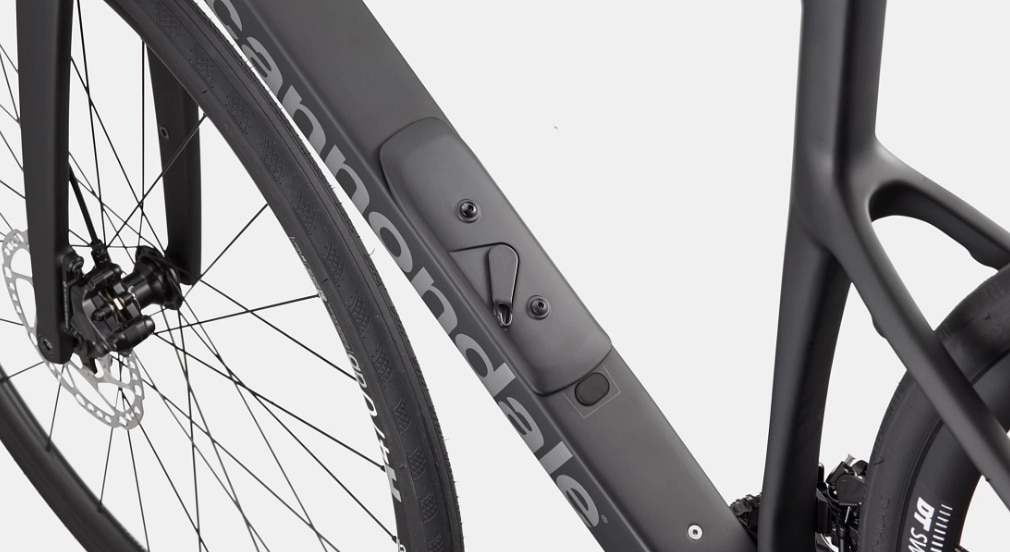

Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts

Fork

Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8“ to 1-1/5” Delta steerer, 55mm offset, fender mounts

Headset

Integrated, 1-1/8“ - 1-1/2”

Drivetrain

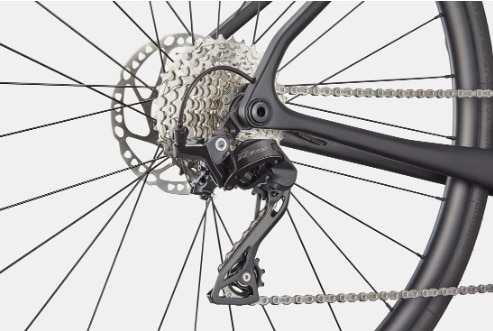

Rear Derailleur

Shimano 105 7100

Front Derailleur

Shimano 105 7100, braze-on

Shifters

Shimano 105 7100, 12-speed

Chain

Shimano 105 7100, 12-speed

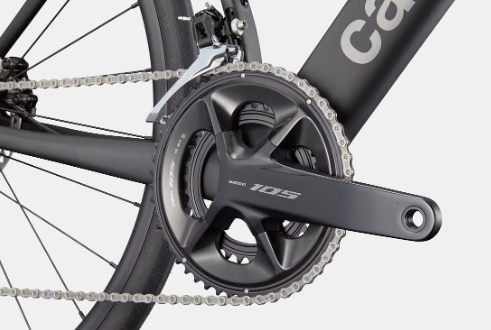

Crank

Shimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)

Rear Cogs

Shimano 105 7100, 11-36, 12-speed

Bottom Bracket

Shimano BSA 68

Brakes

Brakes

Shimano 105 7170 hydraulic disc, 160/160 RT64 centerlock rotors

Brake Levers

Shimano 105 7120 hydraulic disc

Wheels

Rims

DT Swiss R470 DB, 28h

Spokes

Stainless Steel, 14g

Tire Size

32

Wheel Size

700c

Hubs

(F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock

Tires

Vittoria Zaffiro Pro V, 700x32c

Components

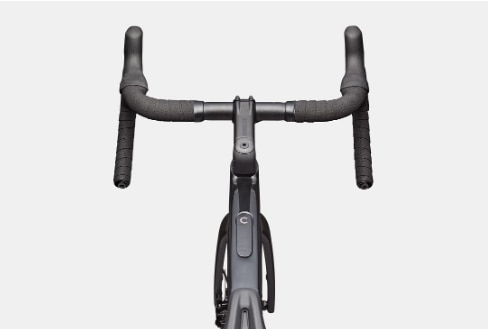

Handlebar

Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)

Stem

Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)

Grips

Cannondale Bar Tape, 3.5mm

Saddle

Fizik Terra Argo X7, 150mm

Seatpost

HollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset
