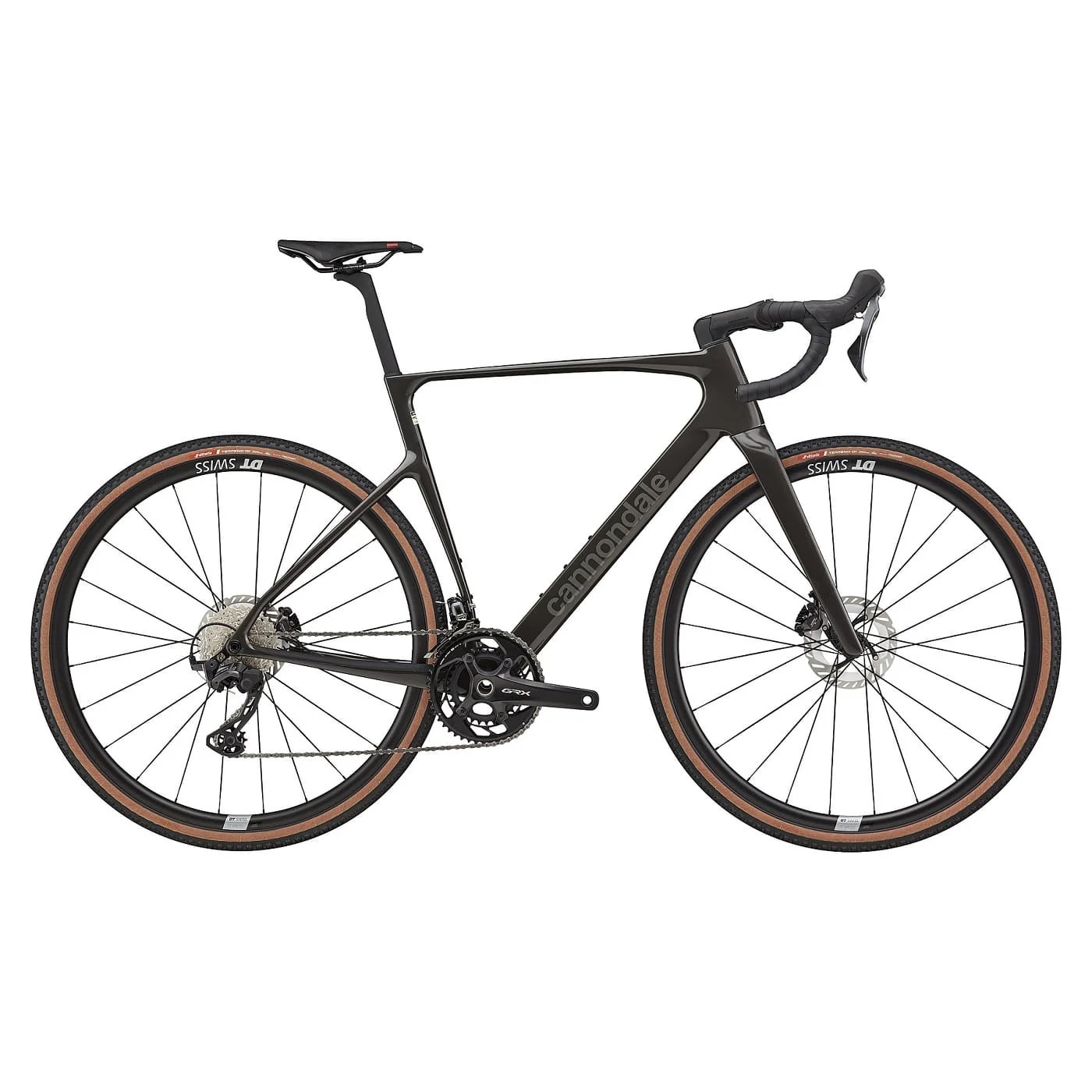

CANNONDALE SUPER X CARBON 3 (51/54)

All In to Go All Out

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Model Description

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.

What it's for

Elite gravel racing, KOM hunting, Going like hell

Highlights

Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty

Crisp, reliable shifting from Shimano’s GRX 820 gravel groupset

Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors

DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and ride-anywhere durability

Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube

Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces

Platform

SuperX

Model Name

SuperX 3

Model Code

C17045U

FRAMESET

Frame

SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder

Fork

SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset

Headset

Integrated, 1-1/8" - 1.5"

DRIVETRAIN

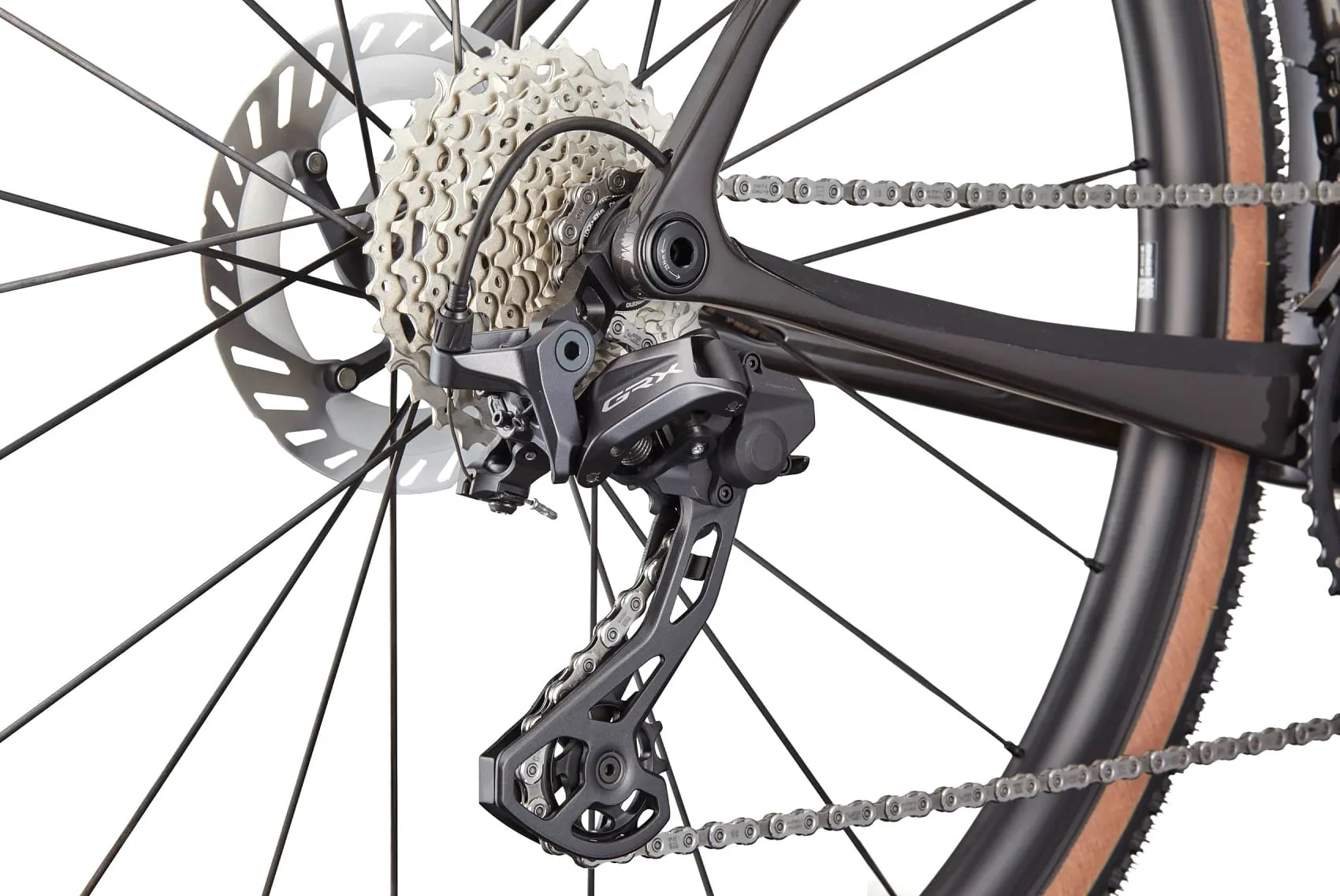

Rear Derailleur

Shimano GRX 820, Shadow RD+

Front Derailleur

Shimano GRX 820, braze-on

Shifters

Shimano GRX 820, 12-speed

Chain

Shimano M8100, 12-speed

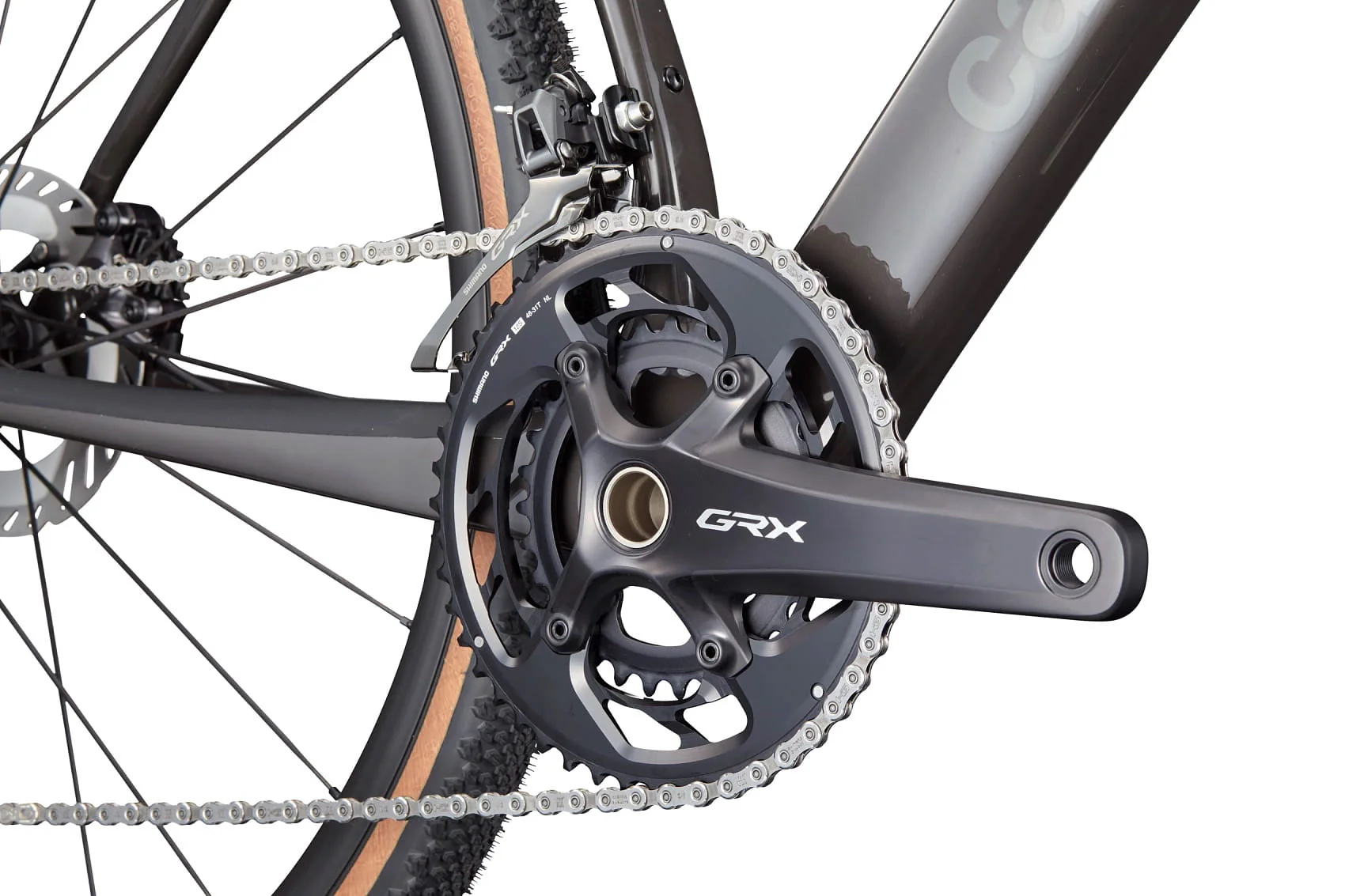

Crank

Shimano RX 820, 48/32

Rear Cogs

Shimano 105 7100, 11-36, 12-speed

Bottom Bracket

Shimano BSA 68

BRAKES

Brakes

Shimano GRX 820, 160/160mm CL800 rotors

Brake Levers

Shimano GRX RX820 hydraulic disc

WHEELS

Front Hub

DT Swiss 370, 12x100mm centerlock

Rear Hub

DT Swiss 370, 12x142mm centerlock

Rims

DT Swiss G1800 Spline 24mm inner width, 25mm depth, 24h, tubeless ready

Spokes

DT Swiss Aero Comp

Tire Size

40

Wheel Size

700c

Tires

Vittoria Terreno T50, 700x40c, tubeless ready

Front Tire

Vittoria Terreno T50, 700x40c

Rear Tire

Vittoria Terreno T50, 700x40c

COMPONENTS

Handlebar

Cannondale C2, 7050 Alloy, Compact

Stem

Cannondale C1 Conceal, Alloy, 31.8, -6°

Grips

Cannondale Bar Tape, 3.5mm

Saddle

Prologo Dimension AGX STN

Seatpost

Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)

CONNECTIVITY

Wheel Sensor

Cannondale Wheel Sensor

EXTRA

Extra 1

Tubeless valves

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
